underhammer pistol
Graves



underhammer pistol Graves
To enlarge the picture of the pistol, please click on it.
(Picture does not show a standard model!)

successes

Excellent handling even without trigger guard!
The missing trigger guard is not a disadvantage due to the sloping surface in the area behind the trigger!

historical information on this pistol

The price-list and other documents can be downloaded here. Notes on how to order.

Each weapon is made by hand according to your wishes. Technical information and possibilities for the specifications can be found listed in the following.

All the lock parts are made using high-quality materials from the full piece. No molded parts are used! In this way, each weapon becomes a unique single piece. The barrel can be dismantled by using a herdened conical pin. The trigger pull weight of the fine trigger will be adjusted according to your wishes. The rifle has an excellent balance. The grip is from walnut wood (heartwood), better walnut wood qualities possible.

If you have any questions, please do not hesitate to contact me.

The standard configuration in details:
pfeil .36 caliber barrel (optional in caliber .40 or .45), Suhl-production
pfeil walnut stock without checkering
pfeil barrel, system and hammer blued
pfeil tapered blade front sight and V-notch rear sight (blued), bead front sight or U-notch possible
pfeil rear sight adjustable for elevation
pfeil front sight adjustable for windage
pfeil nipple with tungsten carbide insert M6x1

top


Technical data:
pfeil .36 caliber barrel, Suhl-production (cold swage-made and vacuum tension-free annealed), the barrel can be easily separated from the system by removing the hardened conical pin
pfeil length of barrel 205mm or longer, approx. 230mm
pfeil sight radius 293mm
pfeil overall length approx. 380mm (according to grip-size)
pfeil weigtht approx. 880g


Included accessories:
pfeil punch to remove the conical pin punch to remove the conical pin
pfeil nipple key nipple key
pfeil key for adjusting of the recess-overlap
pfeil manual with loading data


Optional accessories:
pfeil bullet mold bullet mold
pfeil nipple with tungsten carbide insert M6x1 nipple with tungsten carbide insert
pfeil loading hammer with cleaning jag cleaning rod and ramrod
pfeil powder funnel powder funnel

top

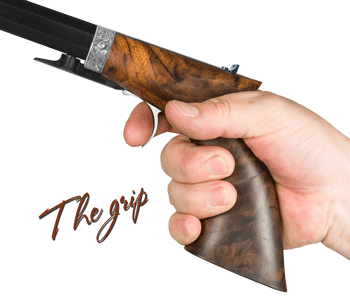

underhammer pistol Graves additional charge for grip-size
A selection of better walnut woods can be shown by clicking on the picture.
Additional charge for grip-size (fitting trigger distance, etc.) (drawing of your hand) suitable for shooter.
There is a wide choice of different precious woods, which can also be covered with checkering.

engravings
underhammer pistol Graves engravings   stock carving
Engravings and gold-inlays are available in different variations.
Examples can be found at engravings

  stock carving
underhammer pistol Graves barrel with pure gold inlays

Pure gold inlays back of barrel (wide + narrow) and the manufacturer's name in pure gold (24 ct). Also possible in silver.

Pure gold inlay (24 ct) at the front of the muzzle

Unterhammerpistole Billinghurst mit Monogramm in Feingold (24kt) Unterhammerpistole Billinghurst mit Monogramm in Feingold (24kt) Unterhammerpistole Billinghurst mit Monogramm graviert Unterhammerpistole Billinghurst mit Monogramm graviert Unterhammerpistole Billinghurst mit Monogramm
No. 1 No. 2 No. 3 No. 4 No. 5
24ct- gold monogram monogram engraved monogram engraved
in crest

The weapon is proof-fired in the proofhouse Suhl and shows the stamp woth sole and pick.
Suhl is the oldest proofhouse in Germany, it was founded in 1893 as the Royal Prussian Proofhouse zu Suhl.


Your individual wishes are most welcome!

Here you can find notes on how to order and information on cleaning and maintenance.



top





Test report muzzleloader underhammer pistol Graves in the magazine Visier 2/2004 test report pistol Graves in the magazine Visier 2/2004 PDF

Order form for muzzleloader underhammer pistol Graves order form Graves PDF

Drawing of your hand drawing of your hand PDF

Flyer for muzzleloader underhammer pistol Graves flyer Graves PDF

Price-list for muzzleloader underhammer pistol Graves price-list Graves PDF

Price-list for muzzleloader underhammer pistol Davis proof of origin Graves pdf



If you cannot read these documents PDF, please click on the logo: PDF and install the Adobe Reader available free-of-charge.

Please note that all descriptions, measurements and weights on these pages may vary slightly due to individual manufacturing.
