     Tilo Dedinski Vorderladerwaffenbau - Germany

underhammer rifle
Billinghurst Vetterli

muzzleloader Underhammer rifle Billinghurst 50 meter Vetterli

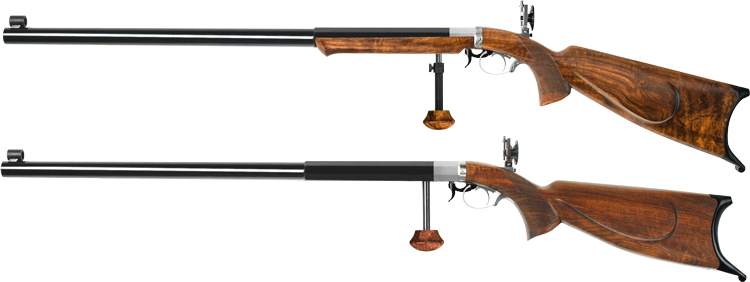

Lupe To enlarge the picture of the rifle, please click on it.
The stock drop is available in different sizes. The rifle pictured at the top has a fore-end and a stronger drop than the rifle below.

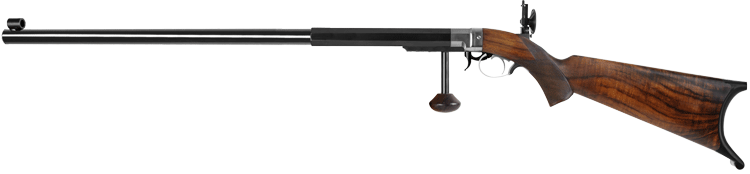

version with oval system and lighter barrel
Billinghurst Vetterli with oval system

The lock of this rifle is available in two versions:

- trigger system M:
 equipped with a direct trigger system
- trigger system MR:  equipped with a direct trigger system (half cocked)
Billinghurst trigger version MR

The price-list and other documents can be downloaded here.
Notes on how to order.

Erfolge meiner Kunden

more successes

Informations about William Billinghurst







front sight base for
MLAIC competitions
front sight base MLAIC

Each weapon is made by hand according to your wishes. Technical information and possibilities for the specifications can be found listed in the following.

All the lock parts are made using high-quality materials from the full piece. No molded parts are used! In this way, each weapon becomes a unique single piece. The barrel can be dismantled by using a herdened conical pin. The trigger pull weight of the fine trigger will be adjusted according to your wishes. The rifle has an excellent balance. The tang sight is adjustable for windage and elevation. The stock is from walnut wood (heartwood), better walnut wood qualities possible.

Standard configuration 50 meters / Vetterli:
Pfeil .37 caliber barrel, length of twist 800mm, 6 groves, Suhl-production, Krupp steel, cold swaged, optional Ueli Eichelberger-barrel
Pfeil walnut stock with cheek piece without checkering (the stock length is made to fit the shooter, left-handed stock possible)
Pfeil optional with fore-endbutt plate with checkering
Pfeil pal rest fix (optional adjustable)
Pfeil barrel and hammer blued
Pfeil case hardened (rust proof "stainless steel finish")
Pfeil front sight insert in your wishes (interchangeable) Korneinsatz No. 1 Ringkorneinsatz No. 2 Ringkorneinsatz No. 3 Ringkorneinsatz No. 5 Ringkorneinsatz No. 5
Pfeil tang sight adjustable for windage and elevation with peep sight insert
Pfeil nipple with tungsten carbide insert M6x1
Pfeil trigger pull weight adjusted according to customer's requirements


Technical data:
Pfeil .37 caliber barrel, Suhl-production (cold swage-made and vacuum tension-free annealed), the barrel can be easily separated from the system by removing the hardened conical pin
Pfeil length of barrel 715mm
Pfeil length of twist 800mm
Pfeil sight radius approx. 785mm
Pfeil weight round system: approx. 5,6kg
weight oval system: approx. 4,6kg

top



Included accessories:
Pfeil nipple key nipple key
Pfeil bullet seater bullet seater
Pfeil punch to remove the conical pin punch to remove the conical pin
Pfeil key for tang sight key for tang sight
Pfeil manual with loading-datas


Optional accessories:

Pfeil bullet mold with handles bullet mold
Pfeil front sight insert   globe front sight No. 1 globe front sight No. 2 globe front sight No. 3globe front sight No. 4globe front sight No. 4
Pfeil peep sight insert peep sight insert
Pfeil nipple with tungsten carbide or with platinum insert (M6x1) nipple with tungsten carbid nipple with platinum insert
Pfeil cleaning rod and loading rod with roller ball bearings cleaning rod and loading rod with roller ball bearings
Pfeil arms case with matching foam rubber inlay arms case with matching foam rubber inlay

top


engravings
engravings   Engravings and gold-inlays are available in different variations.

Examples can be found at Engravings

Your individual wishes are most welcome!


Underhammer rifle walnut luxus

There is a wide choice of different precious woods, which can also be covered with checkering.

Unterhammerpistole Billinghurst mit Monogramm in Feingold (24kt) Unterhammerpistole Billinghurst mit Monogramm in Feingold (24kt) Unterhammerpistole Billinghurst mit Monogramm graviert Unterhammerpistole Billinghurst mit Monogramm graviert Unterhammerpistole Billinghurst mit Monogramm
No. 1 No. 2 No. 3 No. 4 No. 5
24ct- gold monogram monogram engraved monogram engraved
in crest

The weapon is proof-fired in the proofhouse Suhl and shows the stamp woth sole and pick.
Suhl is the oldest proofhouse in Germany, it was founded in 1893 as the Royal Prussian Proofhouse zu Suhl.


Here you can find notes on how to order and information on cleaning and maintenance.


top


Test report muzzleloader Underhammer rifle Billinghurst in the magazine "Visier 5/2002" test report underhammer rifle Billinghurst in the magazine "Visier 5/2002" pdf

Order form muzzleloader Underhammer rifle Billinghurst order form underhammer rifle Vetterli pdf

Flyer muzzleloader underhammer rifles Billinghurst Vetterli and Whitworth flyer underhammer rifle Vetterli pdf

Price-list muzzleloader Underhammer rifle Billinghurst Vetterli 50 meters price-list underhammer rifle Vetterli pdf

price-list muzzleloader underhammer pistol Billinghurst proof of origin - trigger system (half cocked) pdf


If you cannot read these documents pdf, please click on the logo: Adobe Reader and install the Adobe Reader available free-of-charge.

Please note that all descriptions, measurements and weights on these pages may vary slightly due to individual manufacturing.
