     Tilo Dedinski Vorderladerwaffenbau - Germany

Long Range underhammer rifle "Billinghurst"

Long Range Underhammer rifle

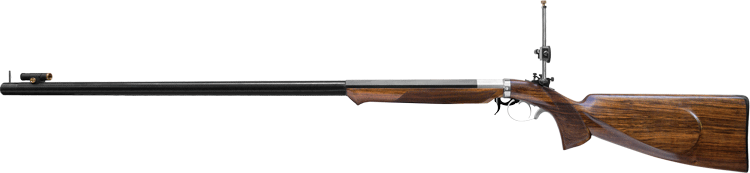

Lupe To enlarge the picture of the rifle, please click on it.
The picture at the top has a fore-end and false muzzle.



Informations about William Billinghurst
The price-list and other documents can be downloaded here.
Notes on how to order.


Each weapon is made by hand according to your wishes. Technical information and possibilities for the specifications can be found listed in the following.

All the lock parts are made using high-quality materials from the full piece. No molded parts are used! In this way, each weapon becomes a unique single piece. The barrel can be dismantled by using a herdened conical pin. The trigger pull weight of the fine trigger will be adjusted according to your wishes. The rifle has an excellent balance. The tang sight is adjustable for windage and elevation. The stock is from walnut wood (heartwood), better walnut wood qualities possible.

Standard configuration Long Range underhammer rifle:
p .458 caliber Eichelberger barrel, progressive twist from 24" to 18", 6 groves

Optional:
p with false muzzle or false muzzle for cross patches.
  false muzzle for cross patchLupe
p

walnut stock with cheek piece without checkering (the stock length is made to fit the shooter, left-handed stock possible)
The butt plate is made of steel and has checkering.
butt plate with checkeringLupe

Optional with fore-end

p barrel and hammer blued
p case hardened (rust-proof "stainless steel finish")
p Kelly globe front sight with post insert (interchangeable sight insert)
p Kelly long range sight adjustable for windage and elevation
p nipple with tungsten carbide insert M6x1
p trigger pull weight adjusted according to customer's requirements


Technical data:
p length of barrel 36" (914mm)
p The barrel can be easily separated from the system by removing the hardened conical pin.
p sight radius approx. 965mm
p weight approx. 6,8kg
p overall length approx. 1370mm by 370mm stock length


Included accessories:
p nipple key nipple key
p punch to remove the conical pin punch to remove the conical pin
p manual

top

Optional accessories:
p rifle sling rifle sling rifle slingLupe To enlarge the picture of the sling, please click on it.
p bullet mold without or with handles bullet mold
p sizing die
p front sight insert
p nipple with tungsten carbide or with platinum insert (M6x1) nipple with tungsten carbid nipple with platinum insert
p punch for cross patches punch for cross patches cross patch
p cleaning rod and loading rod with roller ball bearings cleaning rod and loading rod with roller ball bearings
p arms case with matching foam rubber inlay arms case with matching foam rubber inlay


engravings
muzzleloader engravings   Engravings and gold-inlays are available in different variations.

Examples can be found at Engravings

Your individual wishes are most welcome!


Underhammer rifle walnut luxus   Zur Auswahl stehen verschiedene Nußhölzer, die auf Wunsch auch mit Fischhaut versehen werden können.

24ct- gold monogram     24ct- gold monogram monogram engraved     monogram engraved monogram engraved in crest
24ct- gold monogram monogram engraved monogram engraved
in crest

The weapon is proof-fired in the proofhouse Suhl and shows the stamp woth sole and pick.
Suhl is the oldest proofhouse in Germany, it was founded in 1893 as the Royal Prussian Proofhouse zu Suhl.


Here you can find notes on how to order and information on cleaning and maintenance.


top


Order form muzzleloader Underhammer rifle Billinghurst Whitworth Order form long range underhammer rifle pdf file size 50 KB

Flyer muzzleloader underhammer rifles Billinghurst Vetterli and WhitworthFlyer Long Range underhammer rifle pdf file size approx. 3 MB

Price-list muzzleloader Underhammer rifle 100 meters Price-list Long Range underhammer rifle 100 meters pdf file size


If you cannot read these documents pdf, please click on the logo: Adobe Reader and install the Adobe Reader available free-of-charge.

Please note that all descriptions, measurements and weights on these pages may vary slightly due to individual manufacturing.
